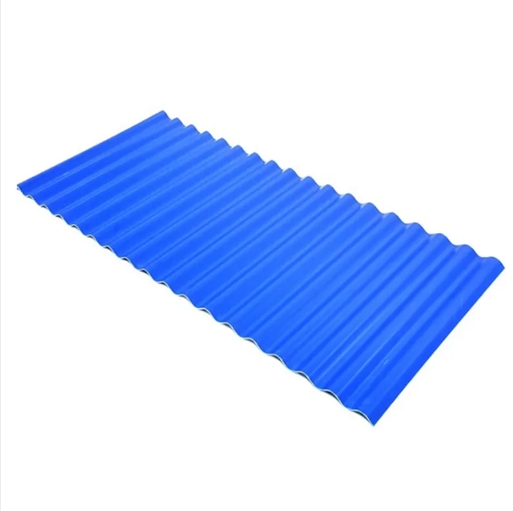

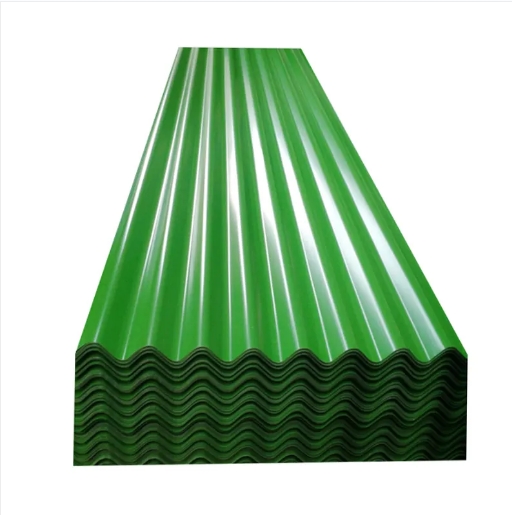

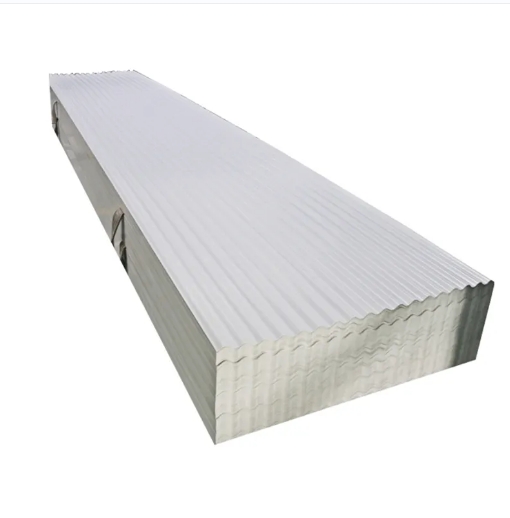

| Color Coated Steel Sheet | |
| Standard | GB, ASTM, EN, DIN, JIS |
| Grade | JIS G 3302-1998, ASTM A653M, GB/T 2518, EN10142,Q/CHG 3-2005, EN 10142, DIN 17162 |
| Thickness | 0.14-2.0mm |
| Width | 600mm-1250mm |
| Coil Weight | 3-5 metric tons&According to customer’s requirment |
| Coil ID | 508mm/610mm |
| AZ Coating | 30-275g/m2 |
| Film Coating | Top: 10-25um |
| Back: 5-7um | |
| Place of orign | Shandong, China |
| MOQ | 5ton |
| Surface treatment | Bright and clean, smooth and flat |

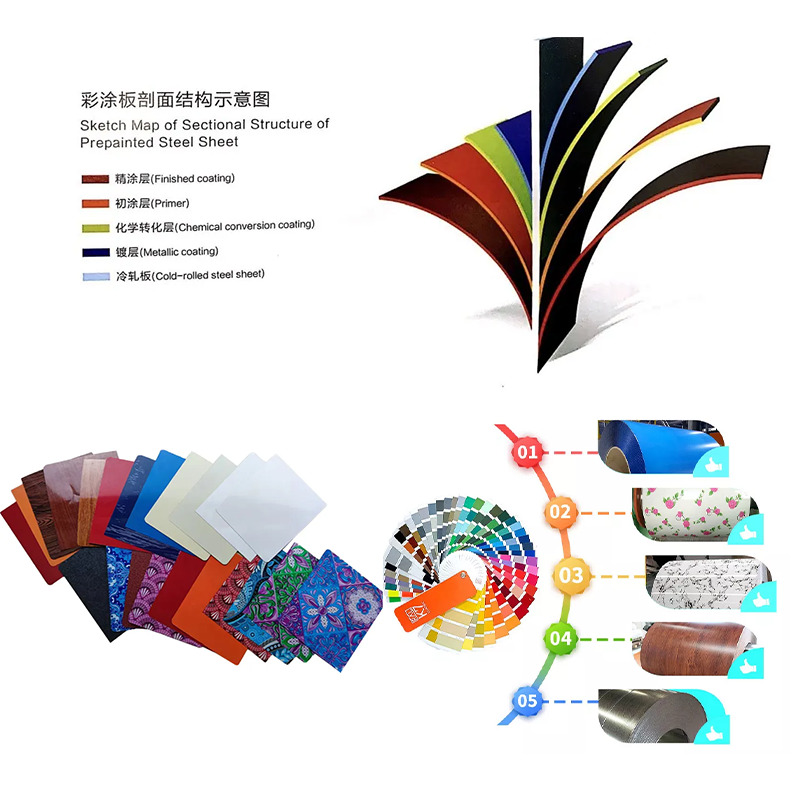

| Coating structure | Top+ Prime/Back, PE/EPOXY |
| Tolerance | Thickness:+/-0.01mm |
| Width:+/-2mm | |
| Total quantity: +/-5% | |
| Zinc coating:+/-5% | |
| Tensile Strength | >300mpa |
| Yield Strength | 370-380mpa |
| Machine features | Suitable for molding and join-up shaping, welding processes. |
| Packing details | export seaworthy packing with waterproof paper around the coil&according to customer’s requirment |
| Delivery time | within 20 days after receipt of T/T or L/C |
| Payment terms | T/T or L/C |
| Construction (outdoor) | plant,agriculture warehouse,balcony handrail,newstall,roller shuttle door |
| Construction | door,light steel structure,elevator |
| (interior) | |
